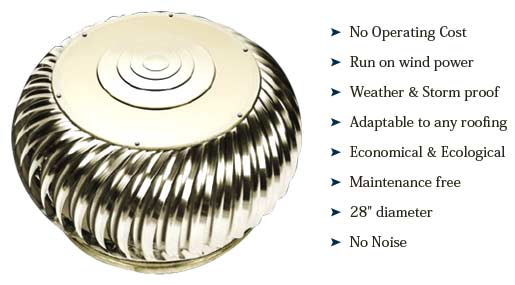

Wind driven Turbo ventilators are powered by the wind to create effective ventilation for different industries. Turbine or Turbo ventilators are round metal vents with fins in them. Even the slightest breeze can be enough for the turbo ventilator to rotate. Rotation causes a centrifugal force on the tip of the fins which suck out the stale hot air from inside of the building. The faster the wind, the faster the turbine will rotate and exhaust the heat, smoke, fumes, humidity, etc.

FEATURES & SPECIFICATIONS

Turbine Dia	28 Inch (760mm)
Neck/Throat	24 Inch (610mm)
Height	18 Inch (460mm)
Base Ring MOC (Mounting ring)	Stainless steel
Top Plate MOC	Stainless Steel 0.8 mm thickness
Rotation	Twin Sealed 6203ZZ bearings with self lubricating Dupont Zytel 101L Polyamide 66 resin to ensure frictionless rotation even at lowest wind velocity Twin Sealed 6201ZZ bearings with self lubricating Dupont Zytel 101L Polyamide 66 resin to ensure frictionless rotation even at lowest wind velocity
Centre shaft	18mm high carbon steel zinc plated.
Inner Arms	M.S. with electro zinc plating
Outer Arms	M.S. with electro zinc plating
Frp base plate	2 mm thick clear 1.020 mtr wide and 1.65 mtr long matching your sheet profile. Weight 8 kg(Approx)
Weight	6.5 Kg approx
Center Width	800mm ± 5 mm
Dia of Bottom Ring	600mm ± 15 mm
Nos of Bearing	02 Nos
Bearing Type	SKF – 6001 ZZ & 6003 ZZ Permanently Lubricated & Sealed
Rivets	Aluminum Alloy with Washer

NEW AGE TURBO VENTILATION
Stainless steel top plate & bottom ring
Rigid roll formed curved aluminum vanes
Permanently lubricated sealed ZZ bearings & Bushings optional
No maintenance - Rust free
Rain proof, bird proof, dust proof and insect proof rugged spider design
